plastic fruit basket injection moulding machine
Home > Products > Injection moulding > plastic fruit basket injection moulding machine

plastic fruit basket injection moulding machine

  • plastic fruit basket injection moulding machine

plastic fruit basket injection moulding machine

    Min. Order: 1 Set/Sets
    Packaging: Dustproof and rainproof film
    Brand: Hewang
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 100 units a month
    Certificate: CE
    HS Code: 8477101090
    Port: Beilun Port,,

Product Description

plastic fruit basket Injection moulding machine

Since the new "national initiative, central locking" EKII series on the market since, bole brand molding machine sales growth steadily year by year in recent years. Lead in the new product technology under the guidance of strategic thinking, bole Injection Molding machine with counterparts, has obvious advantages: clamping structure is the result of patent design center, bole molding machine products precision is higher than peers, compared with their peers, products with no flash, or flash significantly reduced; Bole molding machine that can help users save 2-5% of plastic raw materials.

1. Product Instructions

moulding machine

技术参数表 UNIT BL2500EKH/C54000
国际标准规格 International specification C54000
螺杆直径 Screw diameter Screw specifications A B
mm 190 210
螺杆长径比 Screw L/D ratio 23 21
理论注射容积 Theoretical injection capacity cm3 36840 45004
Shot weight(PS) g 33893 41404
oz 1197.6 1463.0
最大对空注射速率 Injection rate into Air cm^3/s 2369 2894
最大对空注射速率 g/S 2156 2633
注射压力 Injection pressure MPa 146 120
理论塑化速度 Theoretical plasticizing speed g/S (PS) 345 441
注射行程 Injection stroke mm 1300
最大注射速度 Max. injection speed mm/s 84
最大螺杆转速 Screw speed r/min 63
系统压力 Sys. Pressure MPa 17.5
电机总功率 Pump Motor(Min~Max) kW 189.4~193
电机数量 number of Motors PCS 4
预塑电机功率 (1850-4000吨标配) Pre-plastic motor power 209
电热功率 Heater power kW 115
温控区数 Number of temp. control zones 8+1
锁模力 Clamping force kN 25000
开模行程 Opening stroke mm 2000
拉杆内间距 Space between tie bar mm x mm 1820×1620
最小模具厚度(T型槽) Min. mould height mm 800
最大模具厚度(T型槽) Max. mould height mm 1800
最大模板距离(T型槽) Max. Daylight mm 3800
顶出行程 Ejector stroke mm 500
顶出力 Ejector force forward kN 465
顶针回缩力 Ejector force back kN 365
顶出杆数 Number of ejector bar PC 33
干循环时间 Dry Cycle Time S 11.0
能耗(注1) Energy consumption level kW.h/kg ≤0.4(1级)
料斗容积 Hopper capacity kg 400
油箱容量 Oil tank capacity L 1950
机械外形尺寸(约) Machine dimensions(L×W×H) m x m x m 18.6x4.3x4.8
机器重量(约) Machine weight Ton 170

2. Jietan Competitive Philosophy

Leading technology and performance

China unique producer, central locking toggle

CIML carbon-fiber products intelligent moulding line, made for lightweight of Automobile

The performance of Electro- hydraulic hybrid two platen machine has reached the leading level

1. DK Series Electric- hydraulic two platen

High overload resistance and deformation resistance patent tie bar
Patent mould open and close design
New cylinder design and faster platen moving make machien more stable and high precision
Synchronous ejector as standard
Locking cylinder with two-direction damping functions
Independent filtering and cooling system
Fast dry cycle time
New shape and structure of metal sheets

2. Product position

Pla Plastic Products Making Machine 2

More than 100 testing and 20 patents.
Comprehensive improvement on speed,precision,stability,etc.
Competing with Europe brand,to be the first choice for Auto industry.

3. About Jietan Machinery

two platen injection moulding plastic

Ningbo Jietan Machinery Equipment Trading Co., Ltd was established in 2020, located in Ningbo , Zhejiang province , China ;It
connects to Hangzhou Bay bridge in the north and closes to Ningbo Port in the east with very convenient transportation.Its
workshop covers 30,000 square meters,has the kinds of processing lathe over 100 sets and has employees over 150. It has
acquired authentication of ISO 9001-2008 and CE certification.
The company professional manufactures “HW” brand Injection Moulding Machine from 50 -1500 Tons .The machine
sales throughout the domestic market and has exported to all over the world .We always take“ users requirements,good
quality,high efficiency and lasting innovation” as our working target.Good after-sales service is our promise to users.We sincerely
hope that have a good cooperation and to developing together with our customers .
Company Slogan:“ High quality and Good service” .

The world`s leading processing equipment

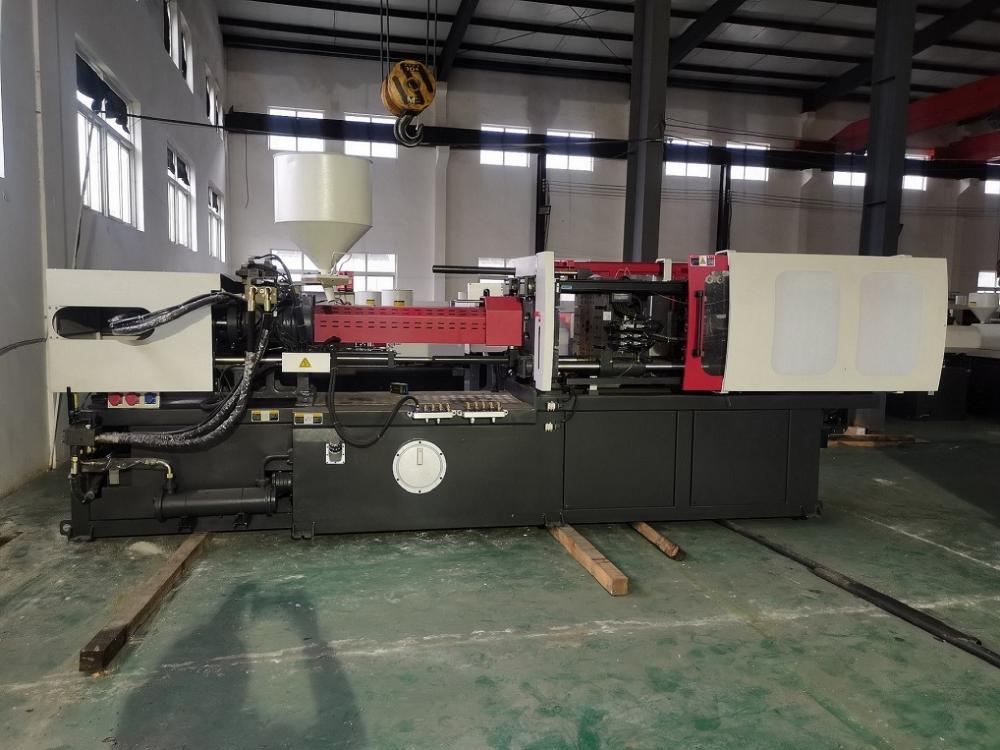

Factory Photo

Looking for ideal Two Platen Injection Moulding Plastic Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Two Platen Injection Moulding Plastic Machine are quality guaranteed. We are China Origin Factory of Two Platen Injection Moulding Machinery. If you have any question, please feel free to contact us.

Ningbo Jietan Machinery Equipment Trading Co., Ltd.

  • 1
  • 2
  • 3
  • 4
  • 5
 Our company is located in Ningbo, China, the capital of plastic machines, where there is a complete industrial supply chain and manufacturing base. However, the technical and economic strength is not inferior to other established manufacturers. Hewang Plastic Machinery is constantly competing with other brands to win the trust of customers with high-performance, high-stability products and customized services. So far, Hewang Injection Molding machines have been sold to more than 30 countries. Customer praise rate is 100%. It is ahead of its peers with excellent cost performance. Hewang presses are especially widely used in developing countries such as Southeast Asia and Africa. They are widely used in air-conditioning home appliances, small electrical appliances, automobiles, industrial supplies and civilian products. With their excellent performance and affordable prices, they have won the recognition of our customers.
In the future, Hewang Plastic Machinery will take intelligence, high efficiency, precision and energy saving as its innovative development direction, and focus on improving the core competitiveness of customers. In addition, the company will continue to take the road of high-tech industry development, professional production, and perfect sales integration, so as to create a sustainable modern high-tech brand.
